Defi® 5s (pro Type)
Advanced AED with 2 energy to select for Child and 2 for Adult ,2 language,5 level of sound volume
Defi® 5s pro Type
Advanced Automated External Dwfibrillator - AED with 2 energy to select for Child mode and 2 energy to select for Adult ,2 language to choose ,5 level of sound volume and large memory for ECG data
Infrared to transfer ECG record to the computer
Energy Sequence Selectable 2 for Adult and 2 for Child mode

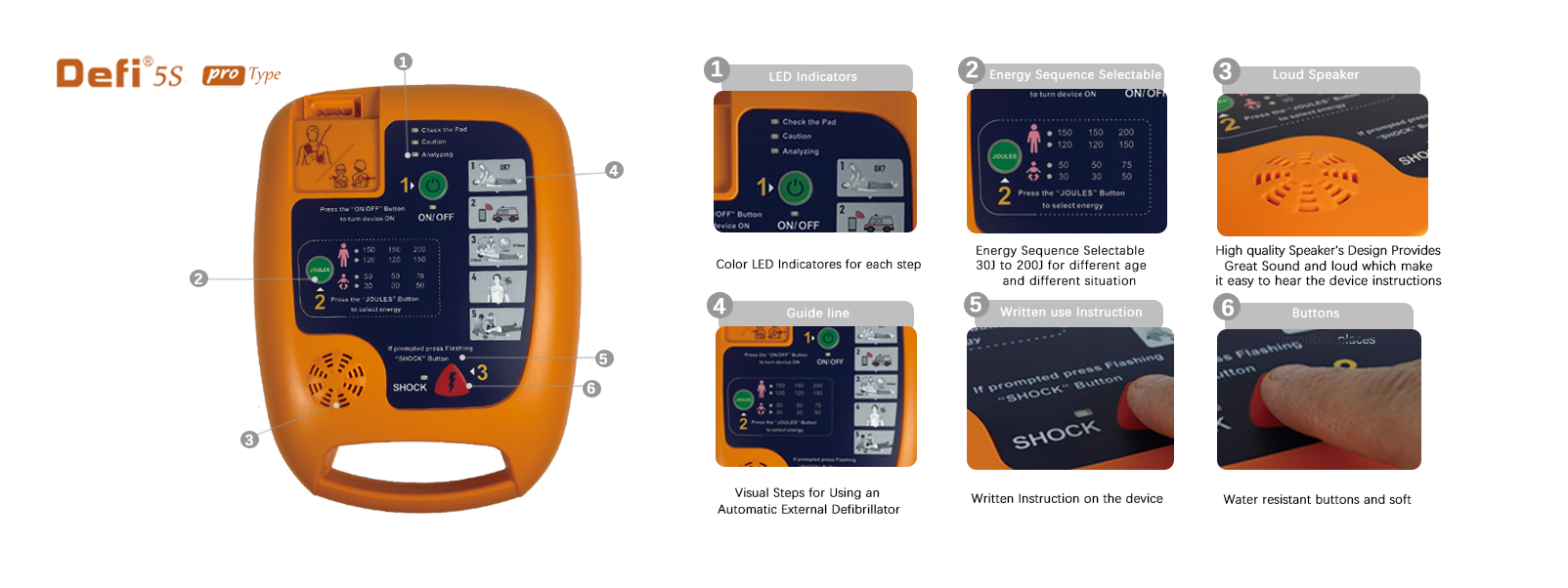

Defi® 5s (pro Type) features
-
Programmable Energy
Selectable Energy for Adult use or Child
-
Storage
Large memory capacity up to 1500 case
-
Self Test
Daily,Weekly,Monthly Self test
-
Data Transfer
Infrared data transmission
-
Memory
Keep track of your data
Type: Automatic External Defibrillator
Self-test: battery, processor, memory, ECG acquisition system and defibrillator.
Mode: Adult, Child
Waveform: Biphasic truncated exponential
Energy: 200-Joules max.

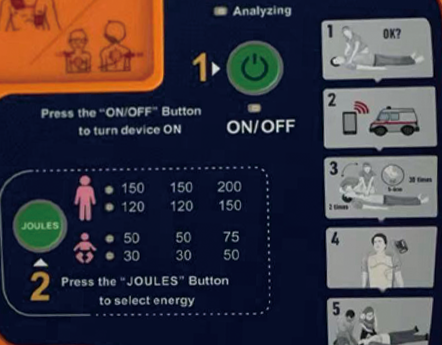

Energy Sequence Selectable: 50, 50, 75 J (Chid mode)
150, 150, 200J (Adult mode)
Charge time: Less than 6 sec. to 150J
Less than 8 sec. to 200J
Voice Prompt:Extensive voice prompt
Visual Indicators: LED prompts
Control:Two buttons: ON/OFF, Shock
ECG storage: 1,500 events.
Data transmission Infrared
Battery LiMnO2 type battery (Battery life of at least 5 years)
Battery LiMnO2 type battery (Battery life of at least 5 years)
Overview of Defi® 5s pro Type
The Defi 5s (pro type) Automatic External Defibrillator (AED) is a lightweight, safe and battery powered device. It is design for simple and reliable operation of trained users. It can be used in situations where there could be several minutes before the arrival of advanced life support (ALS) personnel.
The Defi 5s Automatic External Defibrillator recognizes ventricular fibrillation and other ventricular tachycardia and guides operators through the defibrillation process. When properly connected to a patient who is unconscious, not breathing, and without a pulse, the Defi 5s Automatic External Defibrillator analyzes the patient's heart rhythm, provides visual and audio instruction prompts, determines if a shockable situation exists and then indicates user to press shock button.
Advantages
2 Language to choose (by End user)
5 Levels of sound volume (by End user)
2 Adult Mode
2 Child mode
Infra-red for data transmission (standard)
Daily, Weekly and Monthly self-test
Using the AED while in bag (dont need to open it)
Extra pocket in bag for first Aid products
IPX55 water and dust resistant
5 Levels of sound volume (by End user)
2 Adult Mode
2 Child mode
Infra-red for data transmission (standard)
Daily, Weekly and Monthly self-test
Using the AED while in bag (dont need to open it)
Extra pocket in bag for first Aid products
IPX55 water and dust resistant

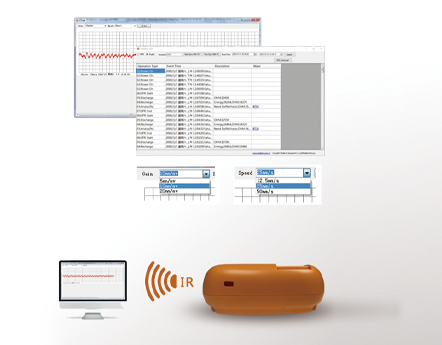

- AED Storage Software (Standard configration)
Its used to assist upper supervisory system of Automatic External Defibrillator DEFI®
The interface display status information recorded in the running of the
AED, including type, event time, description, waves.
Event type includes on event, self-test event, analyzing event, charging event,
discharging event, CPR starting event, CPR stopping event. The event time displayed
is when the event happened.
Description shows the parameter information. ”OHM” represents the detected
impedance of the patient. Power parameter represents the voltage of the finished
charging; ”need to shock” represents that shock advised after analyzing ”no need to
shock” represents that no shock advised after analyzing.
Waveform represents the link of the ECG waves .
Waveform gain can be set as 5mm/mv、10mm/mv、20mm/mv;
Waveform speed can be set as 12.5mm/s、25mm/s、50mm/s:
Waveform speed can be set as 12.5mm/s、25mm/s、50mm/s:
Print ECG
Click the “print” in ECG waveform display interface, then enter the setting interface
of print.
Defi® 5s plus Type
Options and Accessories
LiMnO2 Battery
Working power: 12V , 2.8Ah
Normal working condition:
Working temperature:5~40C
Relative temperature:=80%
Atmospheric pressure:86kpa~106kpa
The size:
The weight:
Attention:
Do not dispose of in fire or put into water
Do not disassemble or short circuit
Do not use in high temprature or near heat sourse
AED PAD
MDC-W1
AED Cabinet W1
MDC-W1
Material: Metal+ Plastic glass
Size: 38x42x15.5cm
Color: any color available
Sound alarm
Carton size: 440x400x240 mm
Gross weight: 7.0kgs
MDC-W3
AED Cabinet W3
MDC-W3
Material: Metal+ Plastic glass
Size: 48x38x24CM
Color: any color available
Sound alarm
Adjustable Heating System
Carton size: 510x410x260 mm
Gross weight: 7.5kgs
MDC-W2
AED Cabinet W2
MDC-W2
Material: Metal+ Plastic glass
Size: 48x38x24CM
Color: any color available
Sound alarm
Adjustable Heating System
Carton size: 510x410x260 mm
Gross weight: 7.5kgs
MDC-W4
AED Cabinet W4
MDC-W4
Material: Metal+ Plastic glass
Size: 36x40x20CM
Color: any color available
Sound & Light Alarm
Video Screen ( 200mmx110mm)
Carton size: 435*395*235 mm
Gross weight: 8.5kgs
IR-210U USB to IrDA
Infra-Red Receiver
Enclosure
- Dimensions: 4.75 cm W x 6.35 cm L x 1.9 cm H
- Unit Weight: 113.4 grams (including 10' cable)
Display
- Red LED to indicate response traffic
Power and Power Management
- Powered by USB port
Range
- Approximately 27.5 m
- Range can be increased by utilizing multiple receivers.
Capacity
- 80 ResponseCard keypads per (1) IR Receiver
Carry Bag
Nylon Bag
